Integrated Management Systems (IMS):
Infrastructure
Machining Division
- Established in the year 2012
- Total Area -6.75 Acres
- Working Area -66,721 sq.Ft
- Headcount -200+ Employees

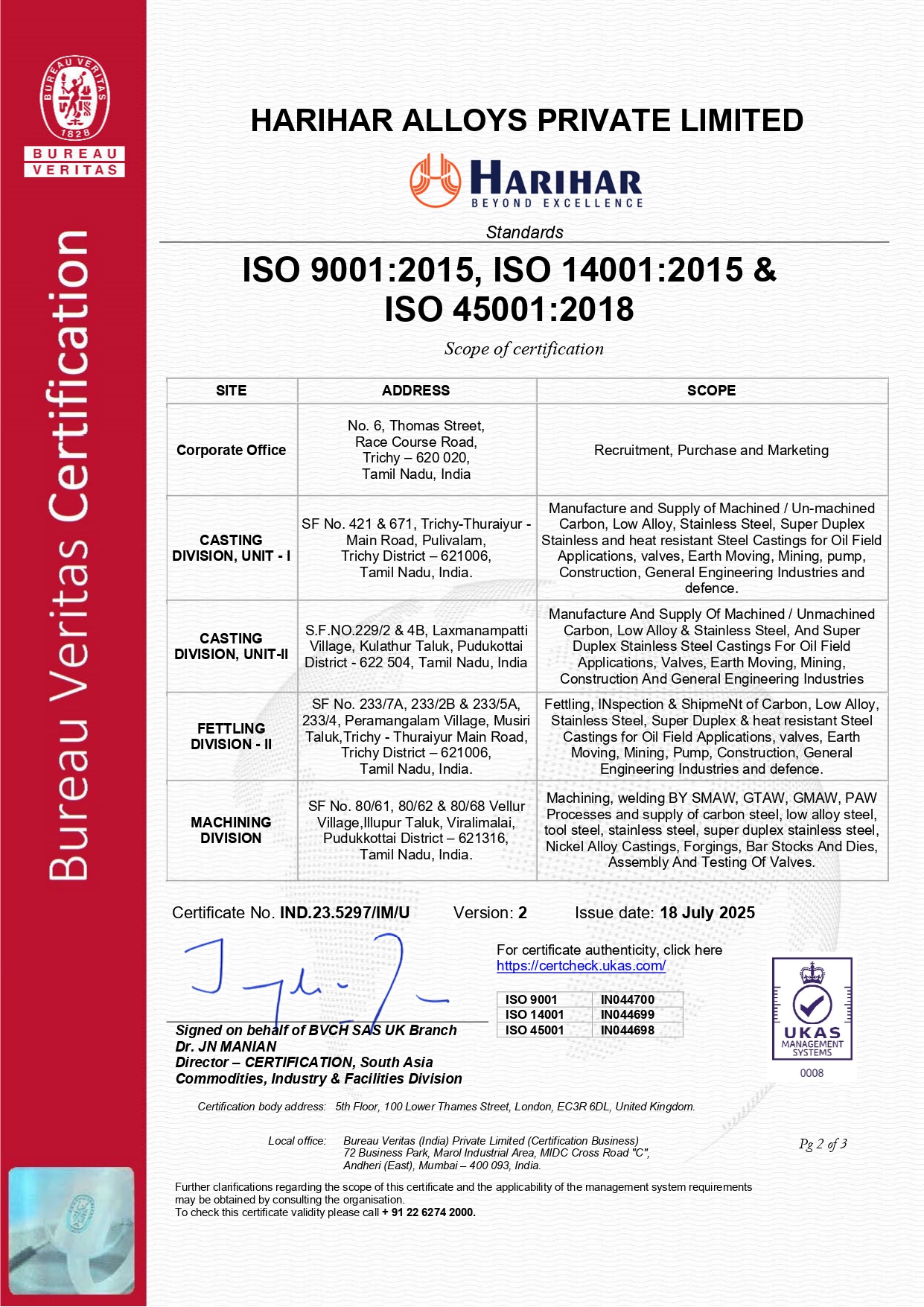

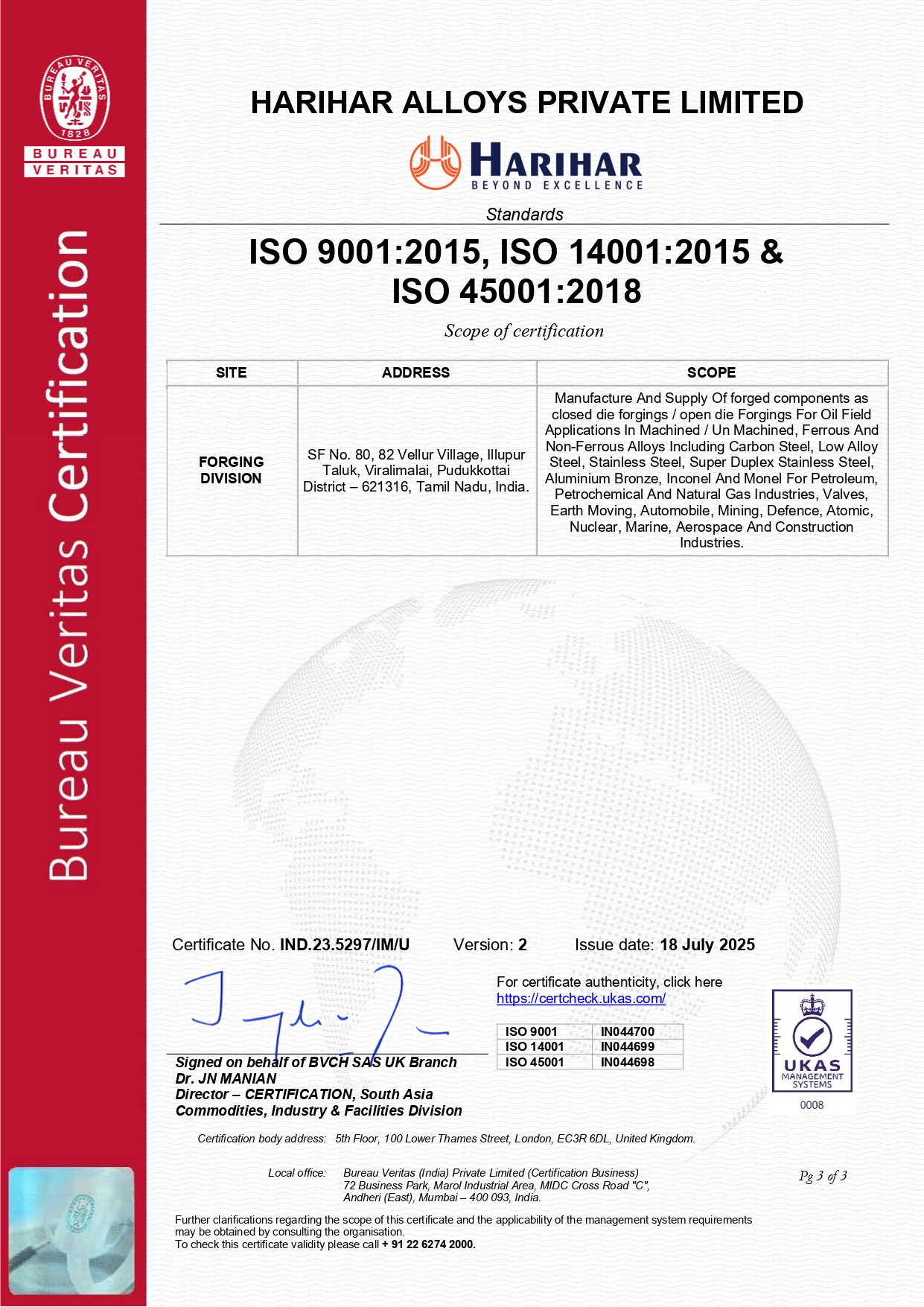

- Certified Management Systems -ISO 9001:2015, ISO 14001:2015 and 45001:2018.
Product Engineering & Development Facilities
Software Used
- ● Solidworks Inspection
- ● DraftSight
- ● Solid Works
- ● Cimco
- ● Edge Cam
Quality
Focus on process capability at every stage of the manufacturing process and adherence to the HAPL – Quality systems is the key for us in meeting and excelling the stringent quality requirements of our Domestic and International customers.

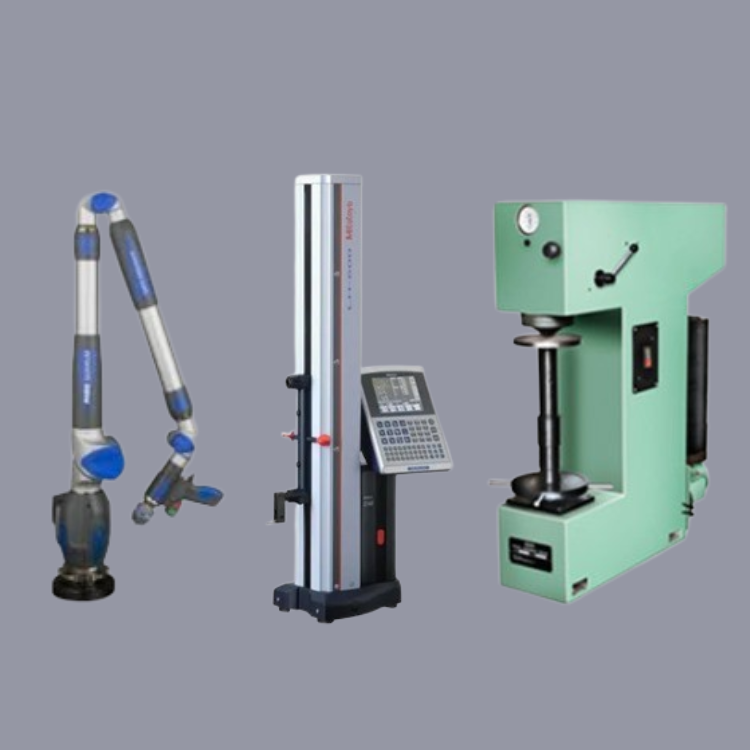

Equipped with
- CMM / FARO-ARM
- 2D HEIGHT GAUGE
- BRINELL HARDNESS TESTING
Non Destructive Testing (NDT) Facilities
Equipped with
- Liquid Penentrant Test (LPT),

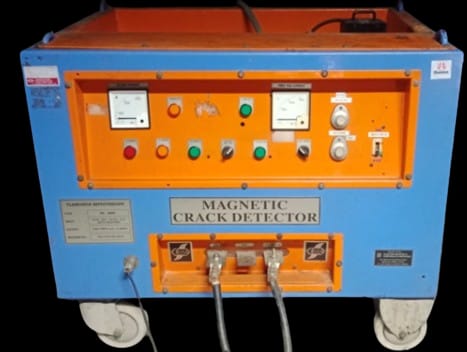

- Magnetic Particle Inspection (MPI)
- Coil Method
- Yoke Method

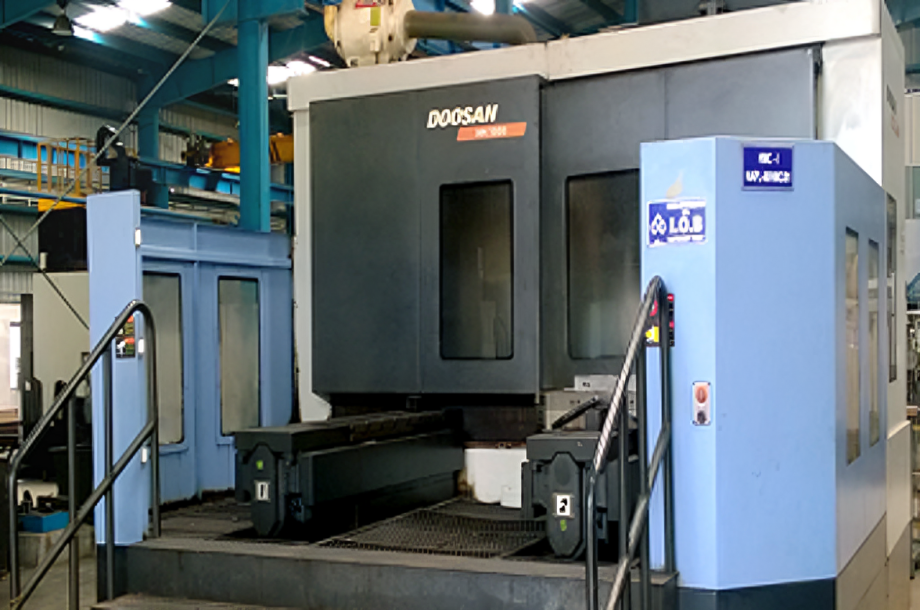

CNC - Horizontal Milling Center
- Total No. of HMC - 3 Nos
-
Capacity:-
- Min: 400x400 mm
- Max: 1000x1000 mm

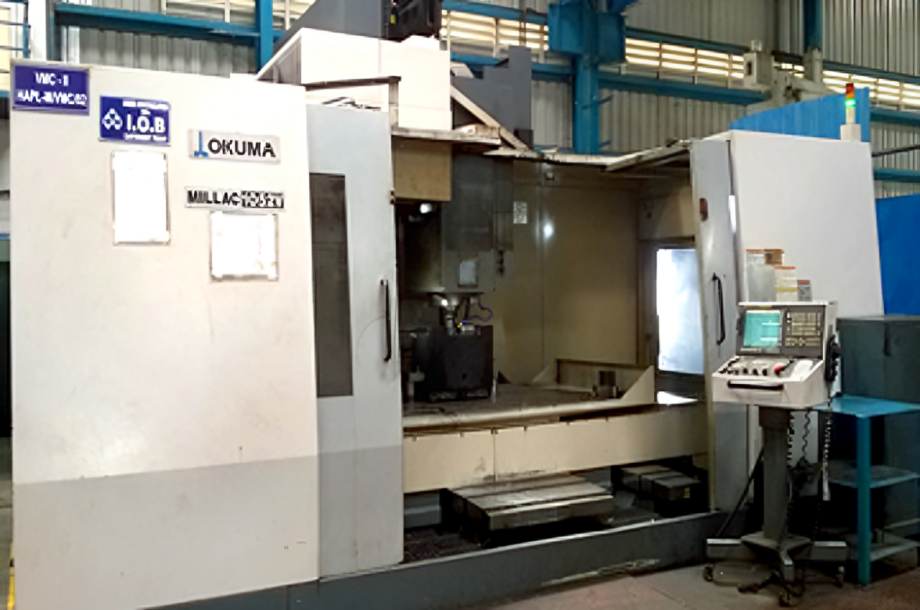

CNC - Vertical Machining Center
- Total No. of VMC - 07 Nos
-
Capacity:-
- Min: 700X500 mm
- Max: 2000X1000 mm

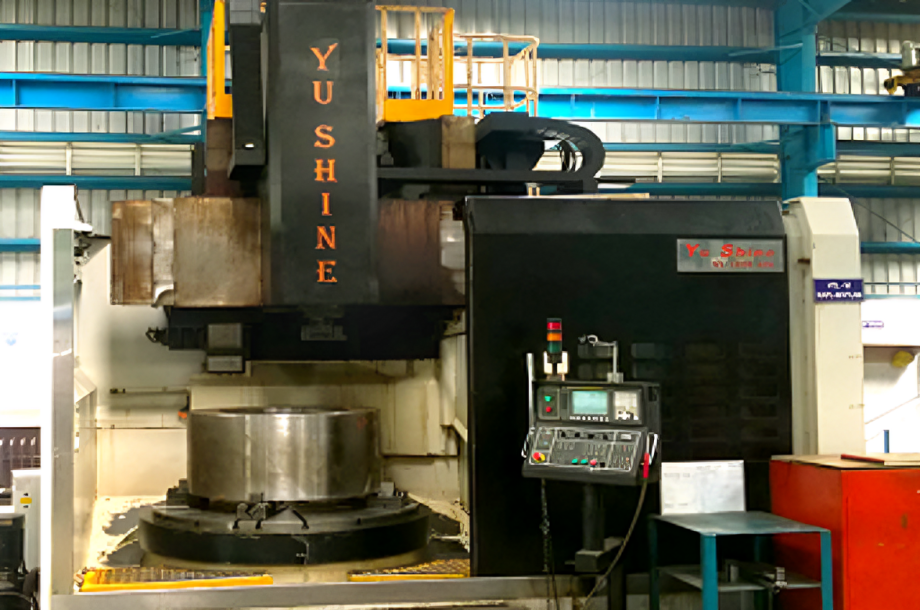

CNC - Vertical Turning Center
- Total No Of VTL Machine - 08 Nos
-
Capacity:-
- Min: 380 mm
- Max: 1600 mm
CNC - Turning Center
- Total No Of TC Machine - 02 Nos
-
Capacity:-
- 350 mm

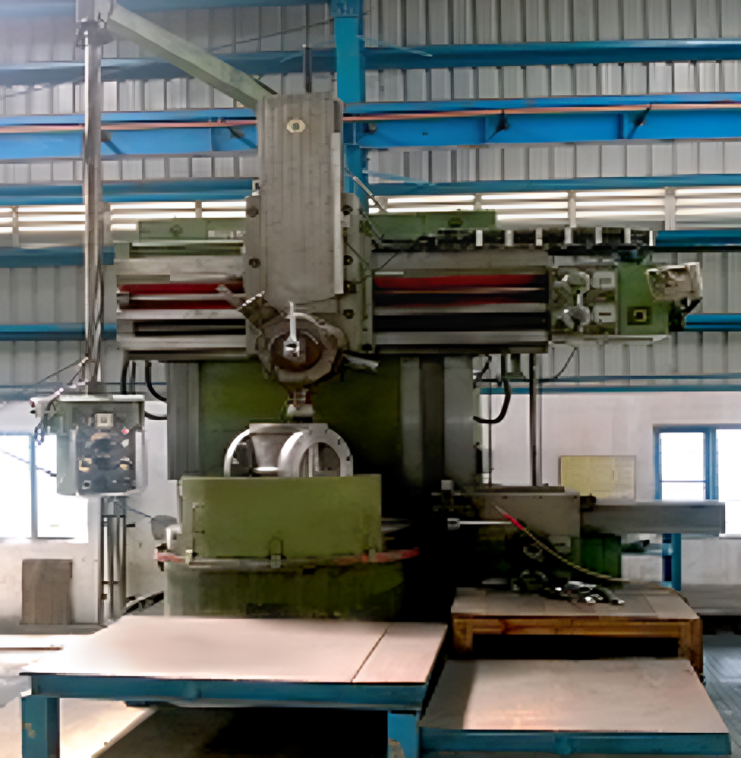

Conventional Vertical Turning Lathe
- Total No of Vertical Turning lathe- 09 Nos
-
Capacity:-
- Min: 500 mm
- Max: 1500 mm
Machines
- Milling machine - 2 Nos

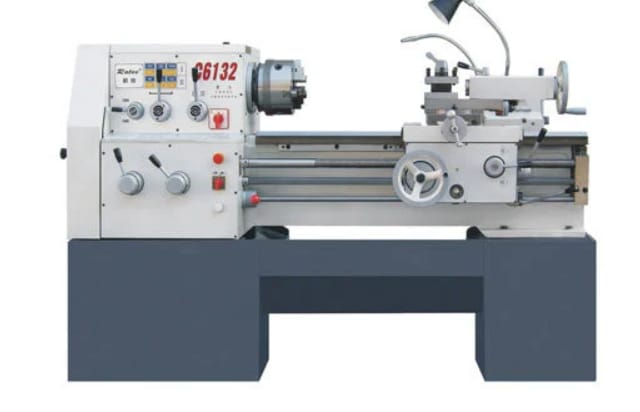

- Conventional Lathe - 14 Nos
- Radial Drilling machine - 2 Nos
- Conventional Horizontal boring machine - 2 Nos
- Conventional Floor boring machine - 1 No

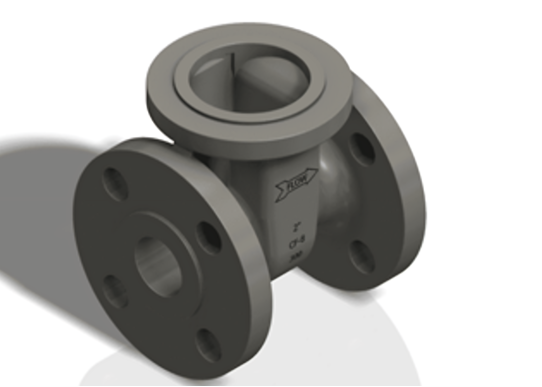

Contract Manufacturing Valves Assembly
Range and Capacity

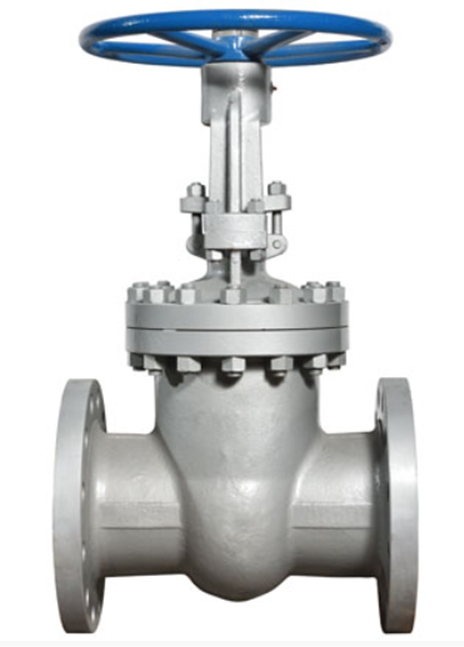

- Gate Valves
- Cast Steel - WCB, WCC, LCC, LCB, CF8M, CF3M, CF8, CF3
- Size Range: 6" - 16"
- Pressure Range: ASME Class 150/300/600
- Testing Standard: API 598
- Valve Assembly
- Size range 6" to 16"
- Pressure Range - ASME Class 150/300/600
- Valve Assembly
- Hydro testing - 300 psi to 2500 psi as per API 598
